Electric Fat Delta Trike
Affirm does a soft check on your credit (which won't affect your credit score).
The Fat Delta Trike is your ticket to the great outdoors. This trike is heavy-duty, built strong all around, and features a relaxed semi-recumbent seating position, and easy on-and-off to make mounting and dismounting a breeze. The 20” x 4” tires are versatile for use on-road, on the bike path, and off-road.
Set up for comfortable cruising with backrest, big handlebars and rear basket the Electric Fat Delta is sure to turn heads on the boardwalk, around the neighborhood, or at the beach.
Highlights
- 20” x 4" tires for road, bike path, or off-road use
- High capacity 17.5Ah battery gets you extra range
- Front fender and rear basket included
- Comfortable backrest and big handlebars

Features
The Electric Fat Delta is part recumbent, part heavy-duty upright trike, and 100% fun. It has a large, comfortable seat with a backrest to keep you comfortable. The heavy-duty frame, 20” x 4” tires, and 3 disc brakes make this a heavy-duty trike loaded with fun features.

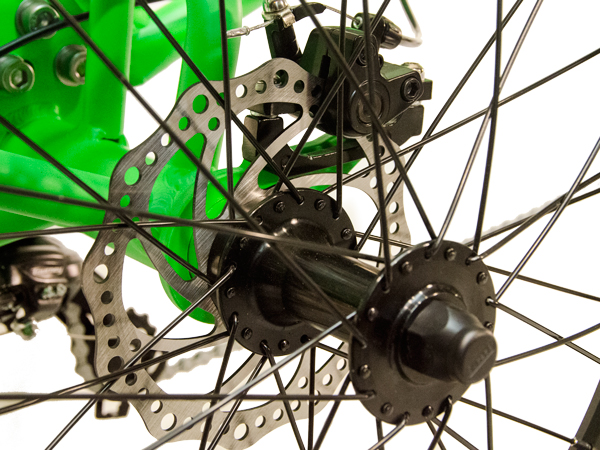

The Electric Fat Delta boasts unrivaled stopping power, featuring dual rear disc brakes and a front disc brake. This means 3 disc brakes for serious stopping power. Both of the rear disc brakes are controlled by the left-hand lever.

Even if it’s been a while since you rode a bike, you’ll appreciate the Electric Fat Delta’s simple 1x7 gearing. The Shimano Rapidfire shifters are easy to use. No need to worry about double shifting or gear combinations!




How to Measure Your X-Seam
At Electric Bike Store, we like to use the X-Seam Measurement to fit riders on recumbent trikes, and inseam to fit riders on upright trikes (like the Sun Traditional).
We use this measurement to adjust your trike to fit you out-of-the-box, but it's simple to adjust your trike later to suit your preferences. This is just a rough measurement to make things easier for you.
Alternatively, if you like reading and diagrams...
To measure your X-seam, you'll need a tape measure, a sturdy board (like a piece of plywood or an ironing board), and an assistant to help you. If you currently ride a recumbent bike, you can use that to take the measurement instead of the board.
Sizing

-
A: Handlebar Reach
16"-23" -
B: Handlebar Rise
12"-19" -
C: Standover Height
26.5" -
D: Seat Height to Pedal
28"-34" -
E: Seat Height to Ground
32" -
Recommended Rider Height
4’11”-6’4”

Shipping
$250 Flat-Rate Shipping.
Contiguous USA Only.
Orders shipping to PA will be subject to sales tax.
Ships fully assembled from our warehouse in Bucks County, PA. The trike is enclosed in a heavy cardboard box fastened to a shipping pallet, delivered by motor freight truck with liftgate service. We use a variety of freight carriers based on your shipping destination. When the trike ships you will receive an email from us with tracking information. Tracking is less precise than UPS or FedEx. The freight company will contact you before the final delivery is made in order to arrange the drop-off with you.
Delivery Time:
East Coast: 2-4 business days
Midwest: 3-5 business days
West Coast: 5-7 business days
With liftgate service, the truck can only lower the pallet to the ground, they cannot deliver it inside your house. You will need to open the box and dispose of the pallet afterwards.
Shipping Size: 81" x 40" x 44" / 190lbs
Please Note: This trike is currently shipping without a user manual. The video section above contains assembly instructions and tips for getting started and using your new electric trike. The specifications sections should also provide most of the information you'll want to know. If you have any questions or suggestions of additional information you would like to see posted, please let us know. Official manuals are in development, and once completed, they will be offered to customers that request them.
If you have any questions, please contact us at
Tel: +1 800.215.1976 or
Email: support@electricbikestore.com
Specs
-
Top Speed
24 mph (With Programmable Limit) -
Range
17-34 Miles (Depends on Total Load, Rider Input, Route and Terrain Contingent) -
Motor
Bafang Fat 500w Geared Front Hub Motor w/ a Speed-Sensor, so the Display Shows Speed Even When the Motor Isn't Being Used -
Battery
Samsung 35ET Cells / 48v 17Ah Capacity -
Max. Payload
300 lbs (With Rider and Cargo) -
Charge Time
4.25 Hours -
Charger
48v 4A RT3 Plug -
Color
Neon Green -
Intended Use
Neighborhood, Cruising, Paved Trail, and Urban -
Frame Material
Hi-Ten Steel -
Suspension
None -
Axles
Bolt-On Front Axles -
Tires
(F & R) Kenda Krusade Sport, 20” x 4” at 5-30 psi -
Saddle
Large Comfort Seat w/ Backrest -
Handlebars
Steel, 22.1mm Diameter -
Brakes
Z-Star Mechanical Disc Brakes w/ Double Disc, Both Wheels are Controlled by One Lever w/ Cable Splitter
-
Grips
Faux Leather, Black Ergo -
Shifter
Shimano SIS Index -
Display
LCD Segment Display -
Front Derailleur
None -
Rear Derailleur
Shimano Tourney -
Gearing
Shimano 7-speed (1x7) / 36t Chainring -
Pedals
Wellgo, Alloy Platform Pedal w/ 9/16” Thread -
Lights
None -
Basket
Color-Matched, Rear Heavy-Duty Basket: 20" Length x 15" Width x 9" Deep w/ Bag -
Fender
Color-Matched Front Fender -
Bell
Bell Mounted on Left Hand Brake Lever -
Overall Length
82" -
Max. Width
33" -
Turning Radius
9'10" (Approx.) -
Overall Weight
84 lbs
