Electric Folding Bike

  • $2,198.00

Affirm does a soft check on your credit (which won't affect your credit score).

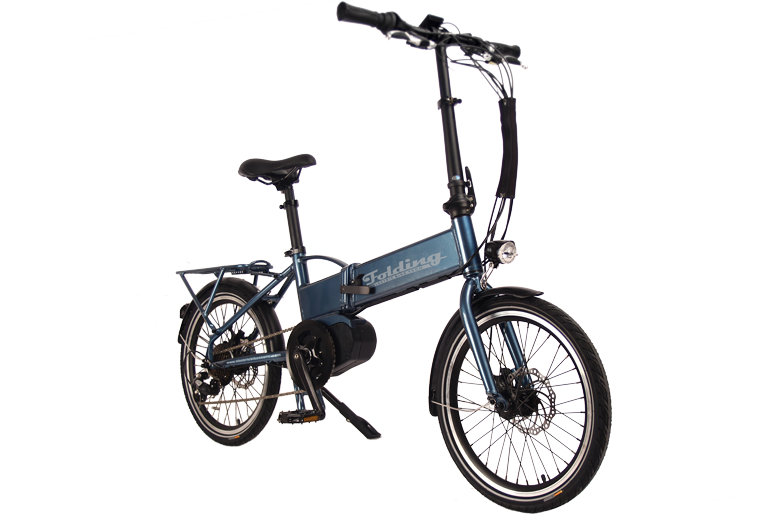

Compact and powerful, the Mid-Drive Electric Folding Bike easily folds for transportation or storage. When expanded it suits riders both big and small.

The Folding Electric Bike travels and stores with ease but is loaded with advanced features like an in-frame Samsung battery, integrated front, and rear auto-on/off lights, mid-drive motor fenders, and rear carrier rack.

Out of stock. Pre-Order now. Expected ship date:
FREE UPS Shipping! Contiguous USA Only.
  • Ships FREE (Contiguous US Only)
  • 1yr Tire-to-Tire Warranty
  • World-Class Support

Highlights

  • Portable and lightweight
  • Dapu 500w integrated mid-drive motor
  • In-frame 48v 7Ah Samsung battery
  • Includes fenders and auto-on/off lights
  • Fully adjustable for riders of all sizes

Videos

Based on 1 review Write a review

Features

The Mid-Drive Electric Folding Bike travels and stores with ease and is loaded with advanced features like in-frame Samsung battery, integrated front and rear auto-on/off lights, mid-drive motor fenders, and rear carrier rack.

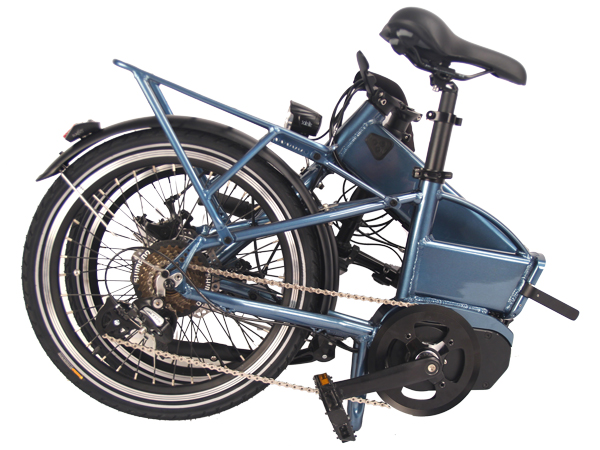

Compact Folding

With a double-locking safety hinge and sturdy aluminum frame, the Mid-Drive Electric Folding Bike is strong and reliable. The heavy-duty center stand protects your chainring when folded, and even the seatpost telescopes to make a more compact package.

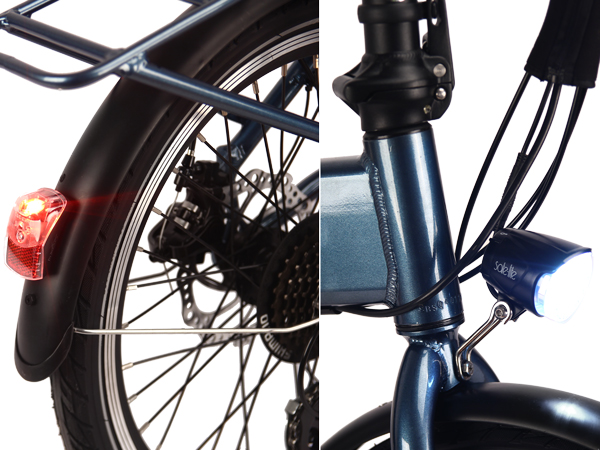

Integrated Lights

The Folding Electric Bike features integrated auto on/off front and rear lights powered by the E-bike battery and controlled by a handlebar button. Never worry about changing out AAA batteries again!

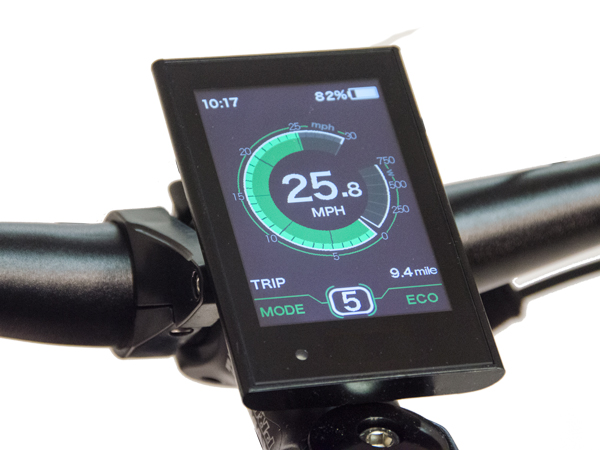

Color TFT LCD
The Mid-Drive Electric Folding Bike features an easy-to-read backlit, full-color TFT LCD display with large text and modern styling. This advanced display includes a battery meter, speed and trip distance readout, and programmable top speed limit.

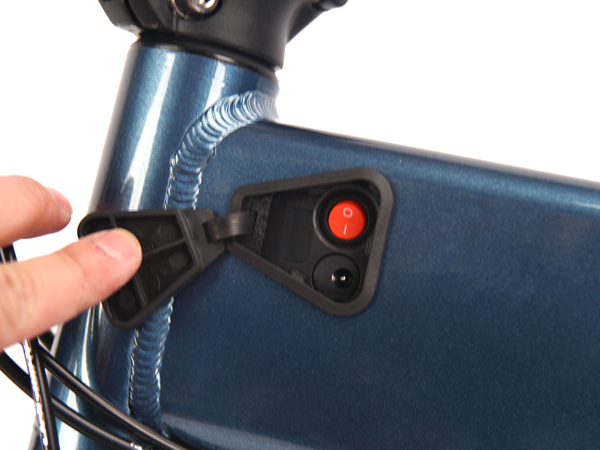

In-Frame Battery
The Mid-Drive Electric Folding Bike’s battery is fully enclosed in the frame, and still removable. It uses Samsung’s most advanced Lithium-Ion cells and an has a fully enclosed weather-proof charging plug. This 48v 7Ah battery uses top-of-the-line modern technology to enhance your ride.

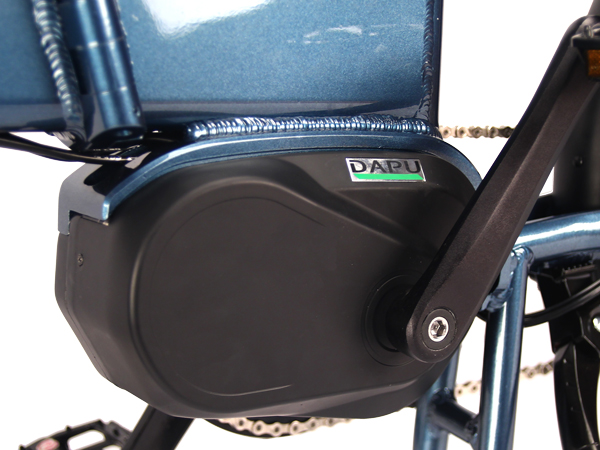

500 Watt Mid-Drive Motor
The frame-integrated Dapu mid-drive motor delivers an impressive 95Nm of torque. With its built-in torque sensor and adjustable assist levels, this motor provides seamless Pedal-Assist mode and powerful, quiet hill-climbing performance.

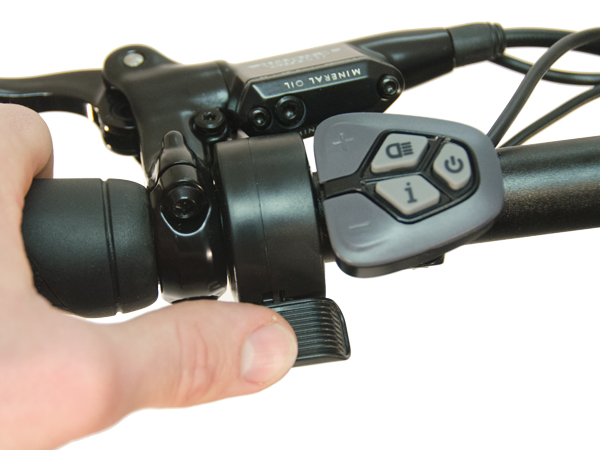

Throttle-on-Demand
The easy to use thumb throttle allows you to engage the motor whenever you need it. Use the throttle to get a boost when starting from a stop or to help get up to cruising speed. The Mid-Drive Electric Folding Bike also features an integrated torque sensor for smooth and responsive pedal-assist (PAS).

Sizing

  • A: Handlebar Reach

    25.5”
  • B: Handlebar Rise

    0”-12” (Telescoping Stem)
  • C: Standover Height

    20”
  • D: Seat Height to Pedal

    24"-35"
  • E: Seat Height to Ground

    31”-40”
  • Recommended Rider Height

    4’11”-6’2”

Shipping

FREE UPS Shipping!
Contiguous USA Only.

Orders shipping to PA will be subject to sales tax.

Ships 90% assembled from our warehouse in Bucks County, PA.

To assemble: Install the front wheel, handlebars, and pedals. The tools for assembly are included (see assembly video for details).

Delivery Time:
    East Coast: 2-4 business days
    Midwest: 3-5 business days
    West Coast: 5-7 business days

Shipping Size: 38" x 27" x 20" / 55lbs

Please Note: This bike is currently shipping without a user manual. The video section above contains assembly instructions and tips for getting started and using your new electric bike. The specifications sections should also provide most of the information you'll want to know. If you have any questions or suggestions of additional information you would like to see posted, please let us know. Official manuals are in development, and once completed, they will be offered to customers that request them.

If you have any questions, please contact us at
Tel: +1 800.215.1976  or
Email: support@electricbikestore.com

Specs

  • Top Speed

    22 mph (With User-Adjustable Speed Limit)
  • Range

    12-25 Miles (Depends on Total Load, Rider Input, Route, and Terrain Contingent)
  • Motor

    Dapu 500w Integrated Mid-Drive Motor
  • Battery

    Samsung 35ET Cells / 48v 7Ah Capacity
  • Max. Payload

    250 lbs (With Rider and Cargo)
  • Charge Time

    3.5 Hours
  • Charger

    48v 2A DC-2.1 Plug
  • Drive Mode

    Advanced Pedal Assist, Trigger Throttle (Measures Rear Wheel Speed, Pedal Cadence, and Pedal Torque)
  • Color

    Metallic Blue
  • Intended Use

    Travel, Commuting, and Urban
  • Frame Material

    6061 Aluminum Alloy
  • Fork Details

    Rigid, Aluminum Alloy, Color-Matched w/ 100mm Thru-Axle
  • Rear Frame Details

    135mm Hub Spacing w/ 10mm Thru-Axle
  • Suspension

    None
  • Rims

    Alloy, 36-Hole Double-Wall
  • Axles

    Bolt-On Axles
  • Spokes

    13 Gauge, Black Spokes
  • Tires

    Kenda K-shield, Puncture-Resistant Tires w/ Reflective Sidewall, 20” x 1.75” at 40-65 psi
  • Saddle

    Velo Boing Gel, VL-6090
  • Seatpost

    Rigid Alloy, w/ 480mm Length x 33.8mm Diameter
  • Reducer Seatpost

    Telescoping Sleeve w/ 370mm Length x 28.6mm Diameter
  • Headset

    Threadless, 1-1/8" Sealed Cartridge Bearings
  • Stem

    Folding, Telescoping / 445mm Rise w/ 6mm Alignment
  • Handlebar

    Aluminum Alloy, 600mm Width x 22.25mm Diameter / 0º Rise
  • Brakes

    (F & R) Tektro Mechanical Disc Brakes w/ 160mm Rotors
  • Brake Levers

    Tektro Levers w/ E-brake Shutoff
  • Grips

    Faux Leather w/ Ergonomic Grip
  • Shifter

    Shimano M310 Rapidfire Shifter
  • Display

    TFT Full Color LCD w/ USB
  • Front Derailleur

    None
  • Rear Derailleur

    Shimano Altus
  • Cranks

    170mm cranks w/ 48t Chainring
  • Pedals

    Wellgo, Aluminum Alloy Platform w/ Reflectors, CrMo-Axle, Black
  • Gearing

    Shimano 7-speed (1x7) / 11-32t Cassette
  • Kickstand

    Yes
  • Lights

    (F & R) Lights Powered by the E-bike Battery / Light Sensor Auto On/Off w/ Over-Ride Button on Handlebars
  • Rack

    Color-Matched Rear Rack
  • Fenders

    Black Front and Rear Fenders
  • Overall Weight

    50 lbs

Battery

  • Nominal Voltage

    48v
  • Nominal Capacity

    7Ah
  • Battery Energy

    336Wh
  • Dimensions

    14.5” x 4” x 1.5” (37cm x 10cm x 4cm)
  • Total Weight

    4.2 lbs
  • Cell Assembly

    18650-3.6v-13S
  • Life Cycles

    800-1000 Cycles
  • Max. Continuous Discharge

    22.5A
  • BMS Protection Current

    30A
  • Discharge Cut-Off Voltage

    37.5v
  • Max. Charge Voltage

    54.6v
  • Inner Resistance

    < 50mΩ
  • Charge Time

    < = 3.5 Hours (7Ah Battery / 2A Charger)
  • Operation Temperature Range

    Charge: 0°C – 45°C / Discharge: -20°C – 60°C
  • Storage Temperature

    0°C – 40°C (Extended Storage: 15°C – 25°C)
  • Battery Box Material

    Aluminum Enclosure
  • Battery Weight

    9.47 lbs
  • Assembled Pack Certificates

    UL; UN38.3; MSDS; RoHS; SGS
  • Manufacturer

    Electric Bike Technologies
