Electric Cruiser Bike
Affirm does a soft check on your credit (which won't affect your credit score).

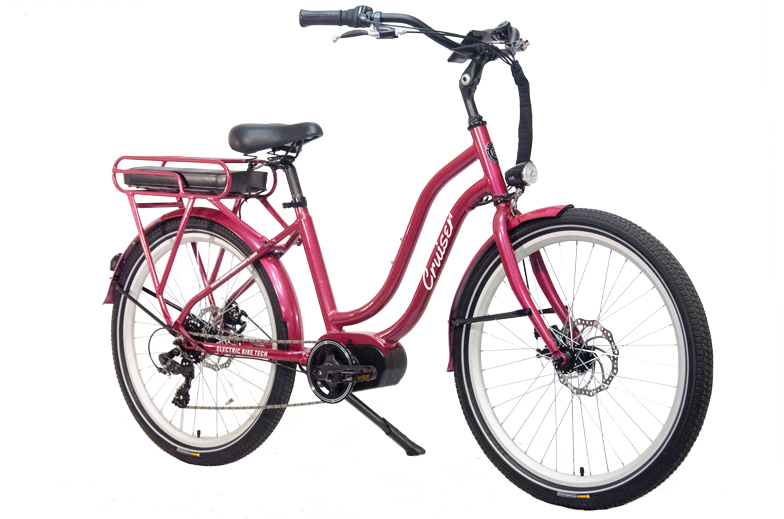

The Mid-Drive Electric Cruiser Bike is your stylish ride for the beachfront, boardwalk, or around the neighborhood. With high, comfortable handlebars, bright lights, and step-through frame, this bike is good old fashioned fun.
Picture yourself at the beach, rolling effortlessly down the boardwalk, free to explore and enjoy the sunshine. The Electric Cruiser makes cruising everywhere a breeze.
Highlights
- Dapu 500w integrated mid-drive motor
- In-rack Samsung 48v 14Ah battery
- Comfortable, wide, upright handlebars
- Low step-through frame
- Beach cruiser tires
- Fenders, rack, and auto on/off lights
Videos
Features
Picture yourself at the beach, rolling effortlessly down the boardwalk, free to explore and enjoy the sunshine. With the Cruiser Electric Bike, comfortable and effortless enjoyment of the bike path is yours.
The Mid-Drive Electric Cruiser Bike’s handlebars are equipped with lock-on ergo grips and have a wide and relaxing position. The cockpit is open and comfortable allowing for a nice upright riding position.
The Electric Cruiser Bike features integrated front and rear lights powered by the E-bike battery and controlled by a handlebar button. The front and rear lights are auto on/off and the rear is also a brake light.
Sizing
-
A: Handlebar Reach
24”-27” (Adjustable quill stem) -
B: Handlebar Rise
0”-7” (Adjustable quill stem) -
C: Standover Height
16.5" -
D: Seat Height to Pedals
29”-38” -
E: Seat Height to Ground
33”-41” -
Recommended Rider Height
5’5”-6’4”
Shipping
FREE UPS Shipping!
Contiguous USA Only.
Orders shipping to PA will be subject to sales tax.
Ships 90% assembled from our warehouse in Bucks County, PA.
To assemble: Install the front wheel, handlebars, and pedals. The tools for assembly are included (see assembly video for details).
Delivery Time:
East Coast: 2-4 business days
Midwest: 3-5 business days
West Coast: 5-7 business days
Shipping Size: 67" x 11" x 35" / 65lbs
Please Note: This bike is currently shipping without a user manual. The video section above contains assembly instructions and tips for getting started and using your new electric bike. The specifications sections should also provide most of the information you'll want to know. If you have any questions or suggestions of additional information you would like to see posted, please let us know. Official manuals are in development, and once completed, they will be offered to customers that request them.
If you have any questions, please contact us at
Tel: +1 800.215.1976 or
Email: support@electricbikestore.com
Specs
-
Top Speed
22 mph (With User-Adjustable Speed Limit) -
Range
25-50 Miles (Depends on Total Load, Rider Input, Route, and Terrain Contingent) -
Motor
Dapu 500w Integrated Mid-Drive Motor -
Motor Weight
9.47 lbs -
Battery
Samsung 35ET Cells / 48v 14Ah Capacity -
Max. Payload
250 lbs (With Rider and Cargo) -
Charge Time
3.5 Hours -
Charger
48v 4A RT3 Plug -
Color
Metallic Raspberry -
Intended Use
Commuting, City, and Neighborhood Riding -
Frame Material
6061 Aluminum Alloy -
Fork Details
Color-Matched, 100mm Hub Spacing w/ 15mm Nuts -
Rear Frame Details
135mm Hub Spacing -
Suspension
None -
Rims
Alloy, 36-Hole, Double-Wall -
Spokes
13 Gauge, Silver Stainless Steel -
Axles
Bolt-On Axles -
Tires
Kenda Beach Cruiser, w/ Reflective Sidewall, 26” x 2.15” at 30-55 psi -
Saddle
Velo Cloud Cruiser Saddle, VL-6104E
-
Seatpost
Rigid Alloy w/ 400mm Length x 30.4mm Diameter -
Stem
Adjustable for 1-1/8” Quill Stem / 90mm Extension / 25.4mm Clamp Diameter -
Handlebar
Alloy, Low-Rise, 600mm Length x 22.2mm Diameter / 3.5" Rise / 60º Sweep Back -
Brakes
(F & R) Zoom Mechanical Disc Brake w/ 160mm Rotors -
Brake Levers
Tektro Levers with E-Brake Shutoff -
Grips
Faux Leather Grips -
Shifter
Shimano Revoshift -
Display
TFT Full Color LCD w/ USB -
Front Derailleur
None -
Rear Derailleur
Shimano Tourney -
Cranks
170mm Length w/ 44t Chainring -
Chain Guard
Black Bash Guard -
Gearing
Shimano 7-speed (1x7) / 14-34t Cassette -
Pedals
VP 565, Aluminum Alloy Platform / Black -
Kickstand
Yes -
Lights
(F) Front Light is Powered by the E-bike Battery (R) 2 Rear Lights: One is Powered by AA Batteries, the other is Powered by the E-bike Battery / Light Sensor Auto On/Off w/ Over-Ride Button on Handlebars -
Rack
Color-Matched Rear Carrier Rack w/ Lock-in Battery in Lower-Tier -
Fenders
Color-Matched Front and Rear Fenders -
Overall Weight
60 lbs
Battery
-
Nominal Voltage
48v -
Nominal Capacity
14Ah -
Battery Energy
672Wh -
Dimensions
16” x 6.25” x 2” (40cm x 16cm x 5cm) -
Total Weight
8.4 lbs -
Cell Assembly
18650-3.6v-13S -
Life Cycles
800-1000 Cycles -
Max. Continuous Discharge
22.5A -
BMS Protection Current
30A -
Discharge Cut-Off Voltage
37.5v
-
Max. Charge Voltage
54.6v -
Inner Resistance
< 50mΩ -
Charge Time
< = 4.7 Hours (14Ah Battery / 3A Charger) -
Operation Temperature Range
Charge: 0°C – 45°C / Discharge: -20°C – 60°C -
Storage Temperature
0°C – 40°C (Extended Storage: 15°C – 25°C) -
Battery Box Material
Aluminum Enclosure -
Battery Type
Samsung 35ET Cells / 48v 14Ah Capacity -
Assembled Pack Certificates
UL; UN38.3; MSDS; RoHS; SGS -
Cell Manufacturer
Samsung Model 35e -
Manufacturer
Electric Bike Technologies
