Electric Mountain Bike

  • $2,900.00

Affirm does a soft check on your credit (which won't affect your credit score).

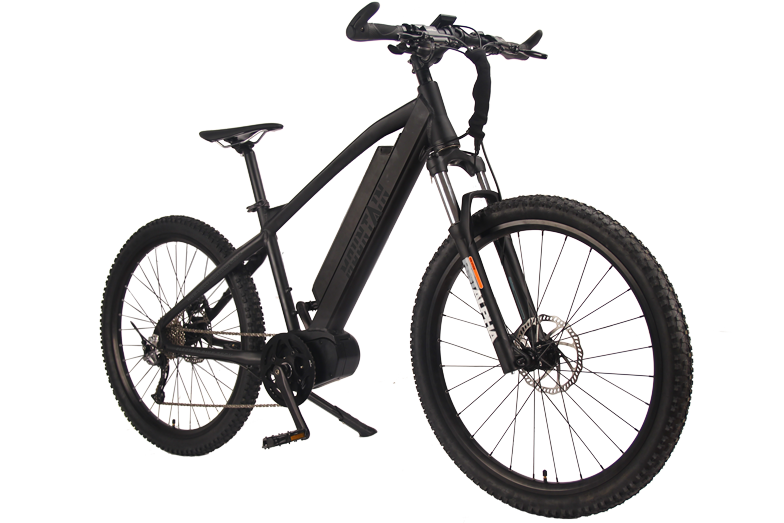

The Electric Mid-Drive Mountain Bike is pure, lightweight, off-road excitement. The 27-5 x 2.4” tires will shred the trails while RST Alpha 80mm travel suspension fork soaks up the bumps.

Lightweight, high-power off-road excitement. With stop-on-a-dime hydraulic disc brakes, wide 2.4” tires and 27-5 plus wheelsize and a versatile 9-speed gearing, you’ll be ready to experience the next level of mountain biking.

FREE UPS Shipping! Contiguous USA only.
  • SHIPS FULLY ASSEMBLED
  • 1YR TIRE-to-TIRE WARRANTY
  • WORLD CLASS SUPPORT

Highlights

  • Dapu 500w integrated mid-drive motor
  • ID-Plus w/ Samsung 35ET cells / 48v / 14ah capacity w/ USB
  • 80mm travel RST Alpha fork w/ adjustment and lockout
  • Tektro hydraulic disc-brakes
  • Shimano 9-speed drivetrain

Videos

Customer Reviews

Based on 1 review Write a review

Features

Lightweight, high-power off-road excitement. With stop-on-a-dime hydraulic disc brakes, wide 2.4” tires and 27-5 plus wheelsize and a versatile 9-speed gearing, you’ll be ready to experience the next level of mountain biking.

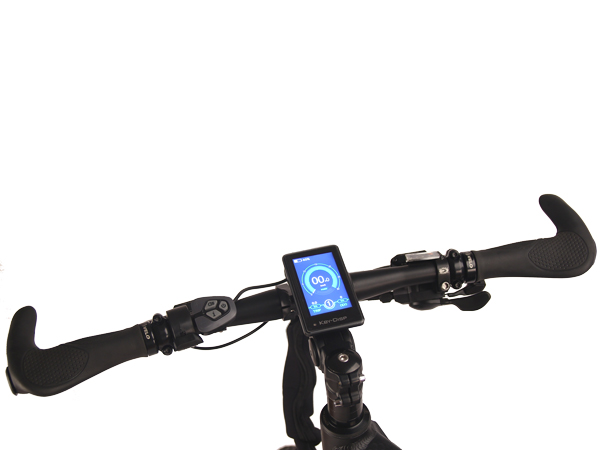

Performance off-road handlebars

The Mid-Drive Electric Mountain Bike’s handlebars are equipped with lock-on ergo grips and integrated bar-ends. The rapid-fire shifter, hydraulic brakes and thumb throttle let you climb and descend with confidence.

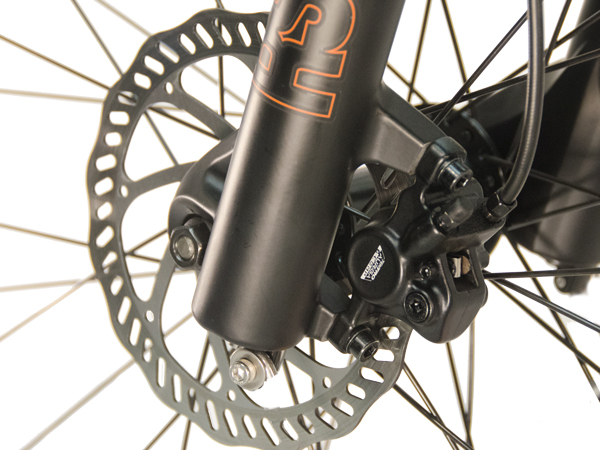

Hydraulic Discs & Suspension Fork

The Mid-Drive Electric Mountain Bike features Tektro Hydraulic disc brakes, a front suspension fork, and 27.5 x 2.4” tires. This bike is ready for all your off-road adventures

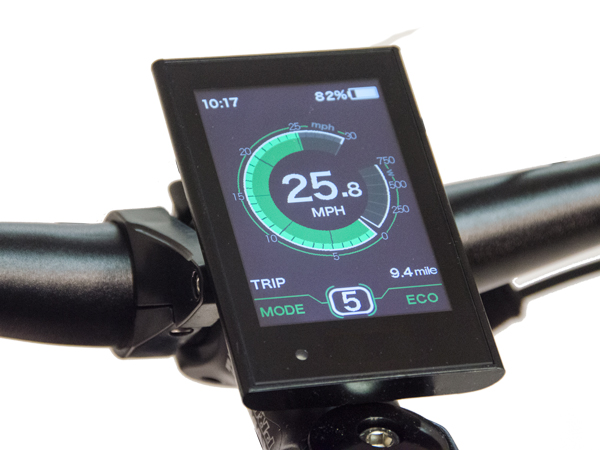

Color TFT LCD
The Mid-Drive Electric Mountain Bike features an easy-to-read backlit, full-color TFT LCD display with large text and modern styling. This advanced display includes a battery meter, speed & trip distance readout, and programable top speed limit.

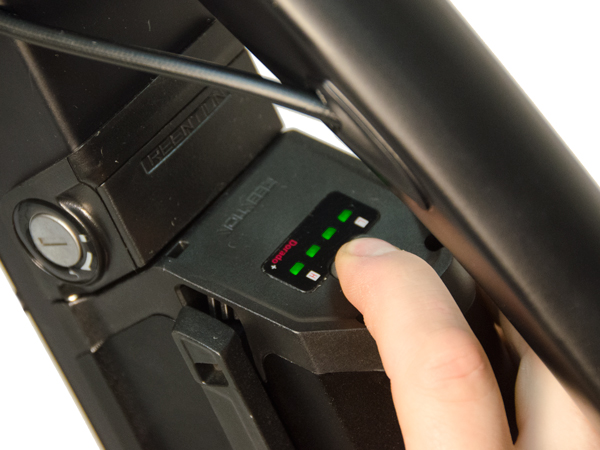

48v14ah Samsung Battery
The Mid-Drive Electric Mountain Bike features a sleek, frame-integrated, locking battery with Samsung’s most advanced Lithium-Ion cells, a USB charging port for your phone, and an integrated battery meter. This is a 48v 14ah battery for plenty of power and range.

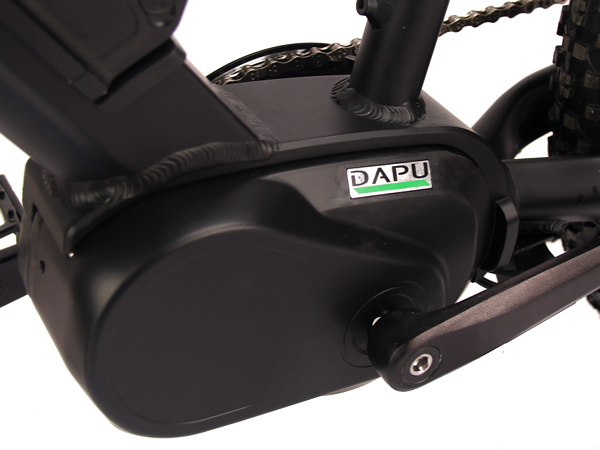

500w Mid-Drive Motor
The frame-integrated Dapu mid-drive motor delivers an impressive 95Nm of torque. With its built-in torque sensor and adjustable assist levels, this motor provides seamless Pedal-Assist mode and powerful, quiet hill-climbing performance.

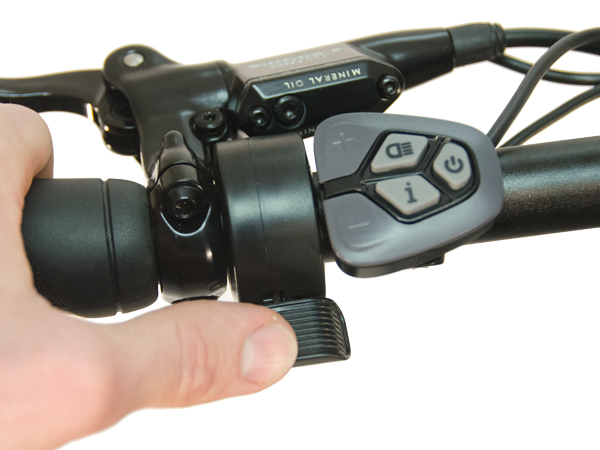

Throttle-on-Demand
The easy to use thumb throttle allows you to engage the motor whenever you need it. Use the throttle to get a boost when starting from a stop or to help get up to cruising speed. The Mid-Drive Electric Mountain Bike also features an integrated torque sensor for smooth and responsive pedal-assist (PAS).

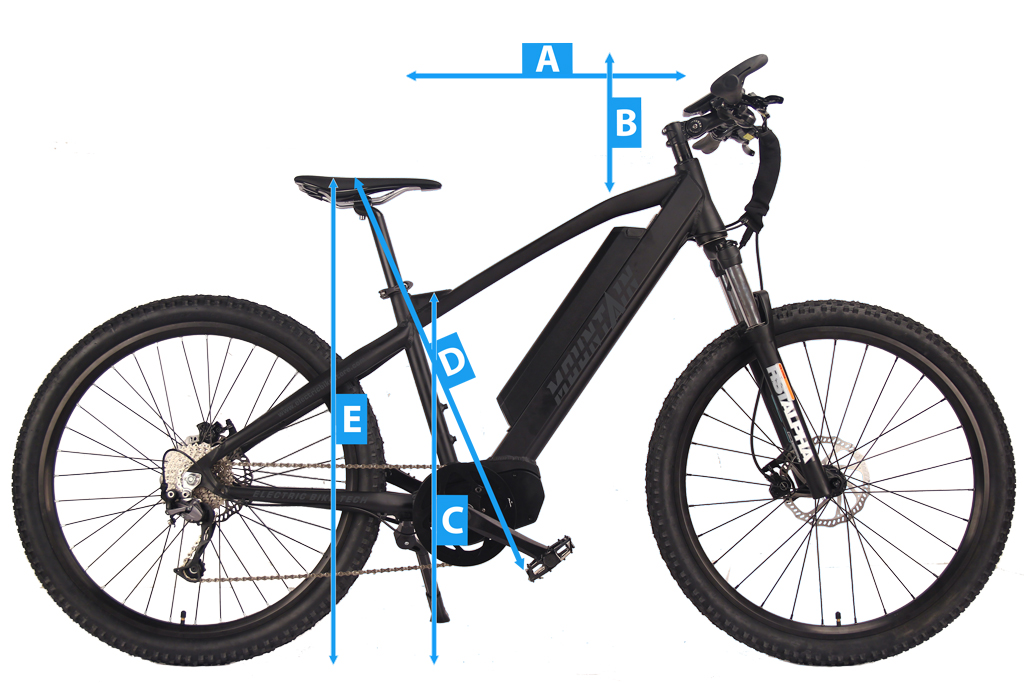

Sizing

  • A (Handlebar Reach)

    26.5” – 28” (adjustable threadless stem)
  • B (Handlebar Rise)

    6” – 9” (adjustable threadless stem)
  • C (Standover Height)

    Approx. 30” or less (7” forward of saddle – depends on setback)
  • D (Seat Height to Pedals)

    27.5” (300mm post) / 31” (stock post) / - 36”
  • E (Seat height to Ground)

    31.5” (300mm post) / 36” (stock post) – 41”
  • Recommended Rider Height Range

    5’9” - 6’2”

Shipping

FREE UPS Shipping!
Contiguous USA only.

Orders shipping to PA will be subject to sales tax.

Ships 90% assembled from our warehouse in Bucks County, PA.

To assemble: Install the front wheel, handlebars, and pedals. The tools for assembly are included (see assembly video for details).

Approximate transit times (once shipped):
    East Coast: 2-4 business days
    Midwest: 3-5 business days
    West coast: 5-7 business days

Shipping size: 62" x 11" x 35" / 60lbs

Please note: This bike is currently shipping without a User Manual. The video section above contains assembly instructions and tips for getting started and using your new electric bike. The Specifications sections should also provide most of the information you'll want to know. If you have any questions or suggestions of additional information you would like to see posted, please let us know. Official manuals are in development, and once completed, they will be offered to customers that request them.

If you have any questions, please contact us at
Tel: +1 800.215.1976  or
Email: support@electricbikestore.com

Specs

  • Top Speed

    26mph (with user-adjustable speed limit)
  • Range

    25-50 miles (total load, input, route and terrain contingent)
  • Motor

    Dapu 500w integrated mid-drive motor
  • Battery

    Half-in-frame w/ Samsung 35ET cells / 48v / 14ah capacity w/ USB
  • Display

    TFT full color LCD w/ USB
  • Max Load Capacity (rider and cargo)

    250lbs
  • Charge time

    3.5 hours
  • Charger

    48v 4a RT3 plug
  • Standover

    Approx. 30” or less (7” forward of saddle – depends on setback)
  • Seat-to-pedal

    27.5” (300mm post) / 31” (stock post) / - 36”
  • Seat-to-ground

    31.5” (300mm post) / 36” (stock post) – 41”
  • Reach

    26.5” – 28” (adjustable threadless stem)
  • Rise

    6” – 9” (adjustable threadless stem)
  • Gearing

    9-sp (1x9) – 36t & 11-34t
  • Axles

    Thru-12
  • Fenders

    none
  • Lights

    none
  • Kickstand

    Yes
  • Racks

    none
  • Brake Levers

    Tektro levers with e-brake shutoff
  • Tires

    2.4” puncture resistant - CST-1844 “Rock Hawk”
  • Grips

    Ergo w/ bar-ends
  • Brakes

    Tektro e-500 Auriga hydraulic
  • Shifter

    Shimano SL-M4000-R
  • Rear Derailleur

    Shimano Alvio 9-speed
  • Pedals

    Alloy platform pedal 9/16” thread
  • Saddle

    Molded carbon fiber with Cro-mo rails - Velo Angel VL-1863 (280mmx132mm)
  • Seatpost

    Alloy 6061-t6 30.9mm x 400mm
  • Stem

    Threadless 1-1/8” - 90mm extension – 31.8mm barbore
  • Fork

    RST Alpha – 80mm travel with adjustment and lockout
  • Weight

    56lbs

Battery

  • Battery

    ID-Plus w/ Samsung 35ET cells / 48v / 14ah capacity w/ USB
  • Charger

    48v 4a RT3 plug
  • Charge time

    <= 4.7 hours (14ah battery / 3a charger)
  • Range

    25-50 miles (total load, input, route and terrain contingent)
  • Nominal Voltage

    48v
  • Nominal Capacity

    14Ah
  • Battery Energy

    672Wh
  • Dimensions

    18” x 2.5” x 3.5” (46cm x 6cm x 9cm)
  • Total Weight

    7.8lbs (3.5kg)
  • Type

    Half-in-frame
  • Cell Assembly

    18650-3.6v-13S
  • Cell Manufacturer

    Samsung
  • Cell Model

    35e
  • Life Cycles

    800-1000 cycles
  • Max. Continuous Discharge

    22.5A
  • BMS Protection Current

    30A
  • Discharge Cut-Off Voltage

    37.5v
  • Max. Charge Voltage

    54.6v
  • Inner Resistance

    < 50mΩ
  • Operation Temperature

    Charge: 0'C---45'C / Discharge: -20'C---60'C
  • Storage Temperature

    0'C---40'C (Extended Storage: 15'C-25'C;)
  • Battery Box Material

    Aluminum enclosure
  • Assembled Pack Certificates

    UL; UN38.3; MSDS; RoHS; SGS
  • Manufacturer

    Electric Bike Technologies
