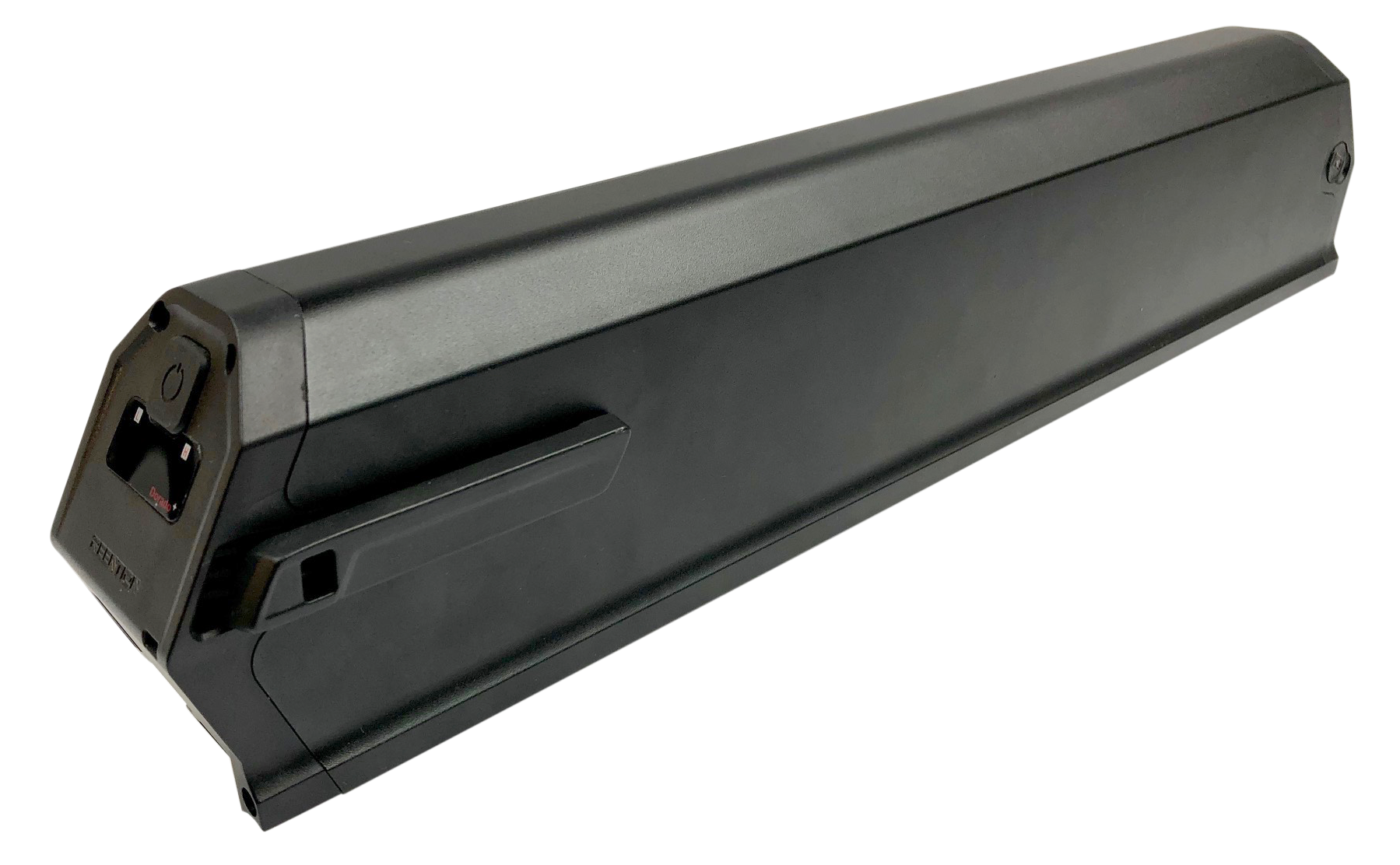

48v 14Ah Li-ion In-Frame Battery w/ USB
Specs
-
Nominal Voltage
48v -
Nominal Capacity
14Ah -
Battery Energy
672Wh -
Dimensions
18” x 2.5” x 3.5” (46cm x 6cm x 9cm) -
Total Weight
7.8lbs (3.5kg) -
Bike Fits
Fat Bike, Fat Trike, City Bike, and Mountain Bike -
Cell Assembly
18650-3.6v-13S -
Life Cycles
800-1000 Cycles -
Max. Continuous Discharge
22.5A -
BMS Protection Current
30A -
Discharge Cut-Off Voltage
37.5v
-
Max. Charge Voltage
54.6v -
Inner Resistance
< 50mΩ -
Charge Time
< = 4.7 hours (14Ah battery / 3A charger) -
Operation Temperature Range
Charge: 0°C – 45°C / Discharge: -20°C – 60°C -
Storage Temperature
0°C – 40°C (Extended Storage: 15°C – 25°C) -
Battery Box Material
Aluminum Enclosure -
Battery Type
Lithium-ion -
Assembled Pack Certificates
UL; UN38.3; MSDS; RoHS; SGS -
Cell Manufacturer
Samsung Model 35e -
Manufacturer
Electric Bike Technologies
