Electric 24" Traditional

  • $1,473.00

Affirm does a soft check on your credit (which won't affect your credit score).

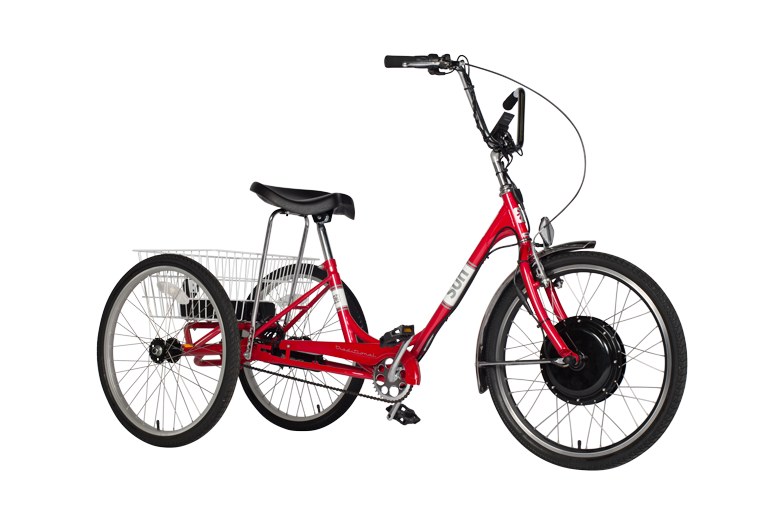

The Sun Traditional 24" adult tricycle is a perfect trike for recreational trike riders. Outfitted with the E-Trike Kit drive system with a heavy-duty direct-drive motor, speed-limited reverse function, and 36-volt Li-ion battery pack this is the ultimate full-sized electric upright adult tricycle.

This user-friendly trike uses 24" wheels and a custom frame design to give you an extremely low step-through for easy on/off. Comfortable western style saddle. The best selling 3 wheeler in America.

$250 Flat-Rate Shipping. Contiguous USA Only.
  • SHIPS FULLY ASSEMBLED
  • 1YR TIRE-to-TIRE WARRANTY
  • WORLD CLASS SUPPORT

Highlights

  • Wide wheelbase
  • Comfort "nose-less" seat
  • Low step-through frame
  • Big rear basket

Videos

Based on 5 reviews Write a review

Features

The Sun Traditional 24 adult tricycle is a perfect trike for recreational trike riders. Outfitted with the E-Trike Kit drive system with heavy-duty direct-drive motor, speed limited reverse function, and 36-volt Li-ion battery pack this is the ultimate full-sized electric upright adult tricycle.

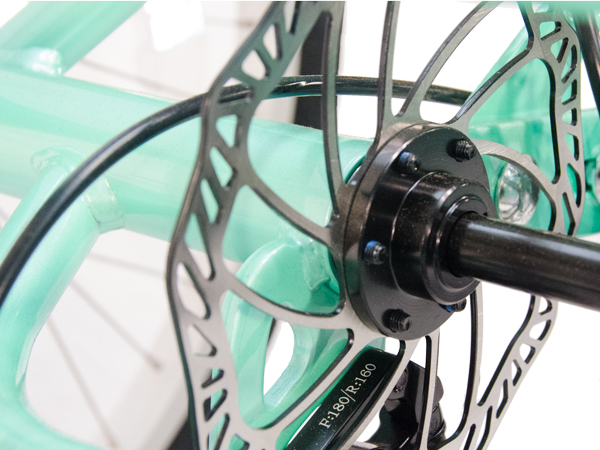

Upgraded Disc Brake

The Electric Traditional Trike features a Promax 160mm rear disc to supplement the front brake. Combined with the safety shut-off e-brake levers and integrated parking locks, this trike has all the stopping power you need to stay safe.

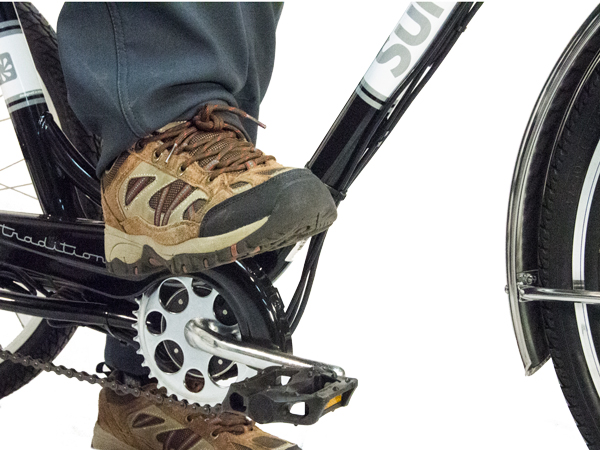

Easy Step-Through Frame

The Electric Traditional Trike features an easy-step-though frame. With a low 12.5" step-over height, the traditional makes getting on and and riding a breeze.

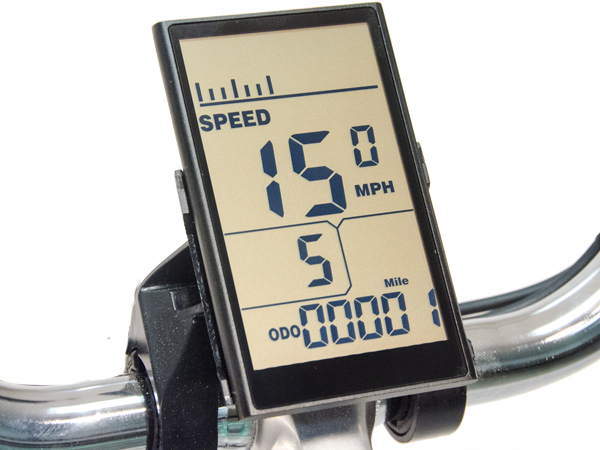

Easy-To-Read Segment Display
The Electric Traditional Trike features an easy-to-read backlit display with large text mounted on the handlebars. This advanced segment LCD includes a battery meter, speed and trip distance readout, and programmable top speed limit.

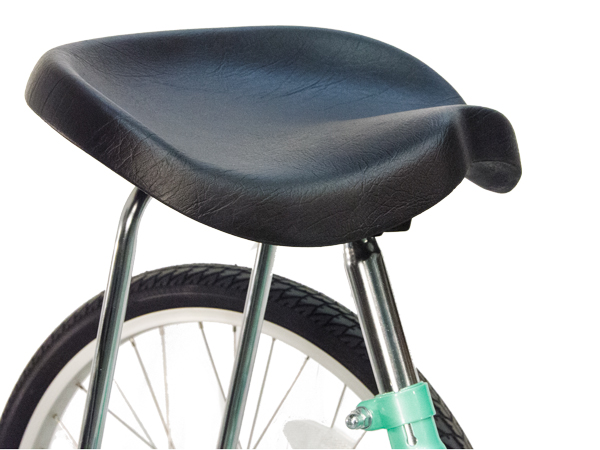

Ultimate-Comfort Seat
The Electric Traditional Trike boasts the most comfortable seat we've ever seen – an extra-large, noseless, padded, ergonomically shaped, tractor-style seat.

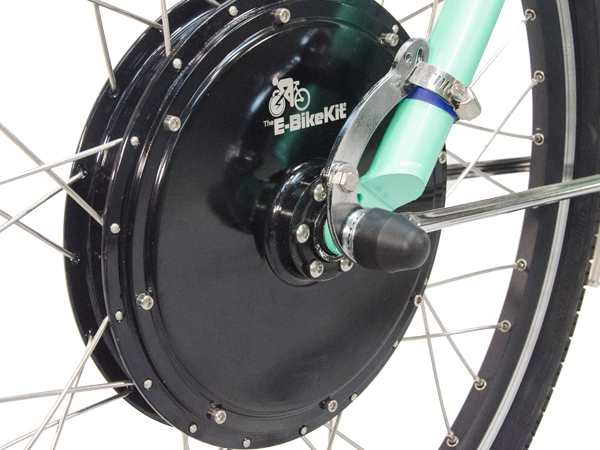

Heavy-Duty Direct-Drive Motor
The 500-1000w E-BikeKit motor is capable of puling over 300lbs and is laced into a USA handbuilt wheel with single-butted 12-13 gauge spokes for durability. This motor is seriously heavy-duty.

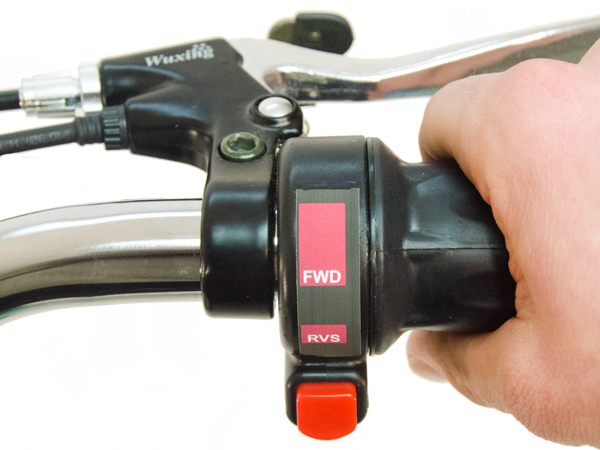

Twist Throttle with Reverse
The Traditional features an easy-to-use split-twist throtle with our unique reverse button toggle feature. You can get power when you need it, and back into tight parking spots!

Sizing

Sizing your 24" traditional trike
  • A: Handlebar Reach

    27"-28"
  • B: Handlebar Rise

    0"-6"
  • C: Standover Height

    13"
  • D: Seat Height to Pedal

    25"-31" (Measured from the bottom of the pedal stroke)
  • E: Seat Height to Ground

    25"-31"
  • Recommended Rider Height

    4'5"-6'4"

Shipping

$250 Flat-Rate Shipping.
Contiguous USA Only.

Orders shipping to PA will be subject to sales tax.

Ships fully assembled from our warehouse in Bucks County, PA. The trike is enclosed in a heavy cardboard box fastened to a shipping pallet, delivered by motor freight truck with liftgate service. We use a variety of freight carriers based on your shipping destination. When the trike ships you will receive an email from us with tracking information. Tracking is less precise than UPS or FedEx. The freight company will contact you before the final delivery is made in order to arrange the drop-off with you.

Delivery Time:
    East Coast: 2-4 business days
    Midwest: 3-5 business days
    West Coast: 5-7 business days

With liftgate service, the truck can only lower the pallet to the ground, they cannot deliver it inside your house. You will need to open the box and dispose of the pallet afterwards.

Shipping Size: 73" x 40" x 51" / 190lbs

Please Note: This trike ships with the E-BikeKit user manual for details on the electric-drive system and also with the Sun official manual for the trike itself. The video section above contains assembly instructions and tips for getting started and using your new electric bike. The specifications sections should also provide most of the information you'll want to know. If you have any questions or suggestions of additional information you would like to see posted, please let us know. Official manuals are in development, and once completed, they will be offered to customers that request them.

If you have any questions, please contact us at
Tel: +1 800.215.1976  or
Email: support@electricbikestore.com

Specs

  • Top Speed

    15mph (with programmable limit. Want 20mph, call us)
  • Range

    10-44 miles (depends on battery)
  • Motor

    E-BikeKit Front Geared 500w-720w, 75Nm, 259rpm (36v)
  • Motor Weight

    12.8lbs
  • Battery Options

    36v 9ah, 36v 10ah or 36v 20ah
  • Max. Payload

    275lbs
  • Charge Time

    3hrs-5hrs
  • Charger

    36v 2a – 36v 4a
  • Drive Mode

    Throttle-on-demand and pedal-assist. 5-level speed control, programmable speed limit, current limit, and assist level.
  • Colors

    Red Metallic, Blue Metallic, Black Metallic, Violet Metallic and Mint Metallic
  • Intended Use

    Neighborhood, Cargo and Shopping
  • Frame Material

    High-Tensile Steel
  • Suspension

    None
  • Rims

    36 hole, alloy single-wall rims
  • Spokes

    (F) 12-13g single-butted stainless steel / (R) 14g stainless steel
  • Tires

    Kenda Kwest, 20” x 1.5” at 65psi
  • Saddle

    Extra-large bucket seat with heavy-duty rear brace
  • Brakes

    (F) V-brake / (R) ProMax DSK-400 Mechanical Disc Brake w/ 160mm rotor
  • Brake Lever

    Includes e-brake shutoff and parking lock, one lever for front wheel, one lever for rear wheel
  • Grips

    EBT Grips – EVA Rubber
  • Shifter

    N/A
  • Display

    E-BikeKit 2017 LCD display
  • Front Derailleur

    N/A
  • Rear Derailleur

    N/A
  • Chain Guard

    Color-matched alloy chain guard
  • Gearing

    Singlespeed / 36t Chainring / 20t Freewheel Cog
  • Pedals

    VP 560, resin body pedals w/ 1/2” thread
  • Lights

    None
  • Fenders

    Front fender
  • Basket

    Vinyl coated, steel wire basket – 14.5” x 21” x 9”
  • Inseam Range

    27"-45" (extra small and extra-large sizes require changing parts)
  • Wheelbase

    39"
  • Overall Length

    77"
  • Max. Width

    31"
  • Ground Clearance

    6” (Front Chainring)
  • Overall Weight

    53.7lbs-64.3lbs (Depends on battery type)

Battery

Model Weight Range Mount Style Cost
36v 9ah Shrink Wrapped 4.4lbs 10-22 Battery bag with velcro straps Base Cost
36v 10ah Aluminum 7.7lbs 12-26 Sliding plate with lock +$210
36v 20ah Shrink Wrapped 10.6lbs  20-44 Battery bag with velcro straps +$330
  • Nominal Voltage

    36v
  • Nominal Capacity

    (Depends on choice: 9-20ah)
  • Battery Energy

    (Depends on choice: 378-480Wh)
  • Dimensions

    (Depends on choice)
  • Total Weight

    < = (Depends on choice)
  • Cell Assembly

    18650-3.6v-10S
  • Life Cycles

    > = 80% Dod = 500 Cycles
  • Max. Continuous Discharge

    22.5A
  • BMS Protection Current

    30A
  • Discharge Cut-Off Voltage

    30v
  • Max. Charge Voltage

    42v
  • Inner Resistance

    < 130mΩ
  • Charge Time

    < = 3 hours
  • Operation Temperature Range

    Charge: 0°C – 45°C / Discharge: -20°C – 60°C
  • Storage Temperature

    0°C – 40°C (Extended Storage: 15°C – 25°C)
  • Battery Box Material

    (Depends on choice – aluminum or vinyl w/ canvas bag)
  • Battery Weight

    4.4lbs-10.6lbs
  • Assembled Pack Certificates

    UL; UN38.3; MSDS; RoHS; SGS
  • Limited Warranty

    1 Year
  • Manufacturer

    Electric Bike Technologies

DIY

If you already have a Sun Traditional and want to convert it to electric, we offer conversion kits at E-BikeKit.com, including kits specifically for the Traditional:

Conversion Points:

  • Use the "Sun Traditional" e-bike conversion kit from E-BikeKit
  • 10ah batteries are not recommended for DIY conversions because frame modification is needed for mounting
  • 36-volt is recommended, to keep the maximum speed to 15mph
  • 9ah and 20ah batteries fit easily in the basket, but 10ah batteries won't mount in the basket without modification. For ElectricTrike.com we offer this (see video below) but for conversion at home, we recommend using a 9ah or 20ah battery instead.
